Understanding Layering in Enterprise Application Architecture

What is Layering?

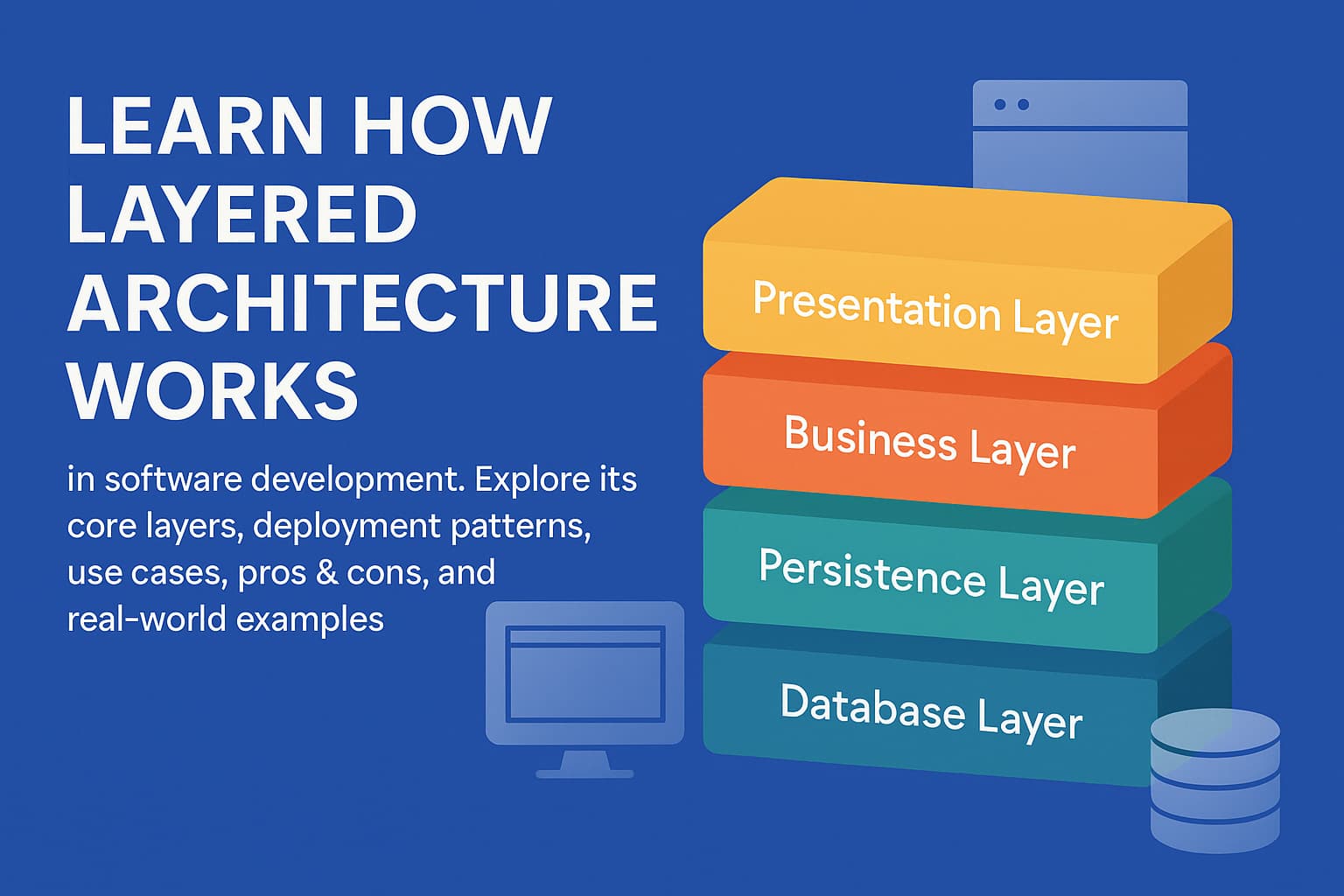

Layering refers to the organization of a software system into distinct layers, each responsible for a specific aspect of the application. This model is akin to a cake where each layer serves a unique purpose, and higher layers depend on the services provided by lower layers. For instance, in a typical architecture, the presentation layer interacts with the domain layer, which in turn communicates with the data source layer.

The Evolution of Layers

The concept of layering has evolved significantly over the years. In the early days of batch systems, applications were often designed without a layered approach. However, with the rise of client-server systems in the 1990s, the separation of concerns became more pronounced, resulting in two-layer architectures where the client handled the user interface and the server managed data.

As the complexity of applications grew, particularly with the advent of web applications, the need for a three-layer architecture emerged: presentation, domain, and data source layers. This three-layer model allows for the encapsulation of business logic separate from both the user interface and the data access logic.

Benefits of Layering

• Simplicity of Understanding: Each layer can be understood independently, allowing developers to focus on one aspect of the application without needing to understand the entire system.
• Flexibility and Substitutability: Layers can be substituted or modified independently without affecting the entire system. For example, swapping out the data source layer can be done without altering the domain or presentation layers, provided that the new layer adheres to the same interface.
• Minimized Dependencies: Layering reduces the dependencies between different parts of the application, which facilitates easier maintenance and scalability.
• Standardization: Layers provide natural points for standardization in design and implementation, which can lead to better integration and interoperability between different systems.
• Reusability: Once a layer is built, it can often be reused across different parts of the application or even in different applications.

Challenges of Layering

While layering offers numerous advantages, it also comes with its challenges:

• Cascading Changes: Changes in one layer may necessitate changes in others. For instance, if a new field is added to the data model, corresponding changes must be made in the domain logic and presentation layers.
• Performance Overhead: Additional layers can introduce performance overhead due to the need for data transformations between layers. However, the encapsulation of functionality can often lead to optimizations that mitigate these costs.
• Complexity in Layer Design: Determining what layers to include and what responsibilities each layer should have can be a complex decision. Poor layer design can lead to tightly coupled components that are hard to maintain.

Conclusion

Layering is a powerful architectural technique that helps manage the complexity of enterprise applications by organizing software into distinct layers with specific responsibilities. By understanding the principles of layering, developers can create more maintainable, scalable, and flexible applications. However, careful consideration must be given to layer design and the interdependencies between them to maximize the benefits while minimizing potential drawbacks.

In summary, layering not only simplifies the understanding of complex systems but also provides a framework for building robust and efficient enterprise applications.
